Part 2: The Kernel (Signed FIT) - Embedded Linux Security on the NXP FRDM i.MX93

In Part 1: The Bootloader Chain (AHAB), we built the first part of the chain of trust. The Boot ROM loaded the ELE firmware, the ELE ROM authenticated the ELE firmware against NXP’s fused SRK hash and the ELE firmware authenticated the OEM containers against the OEM SRK hash we programmed into the fuses.

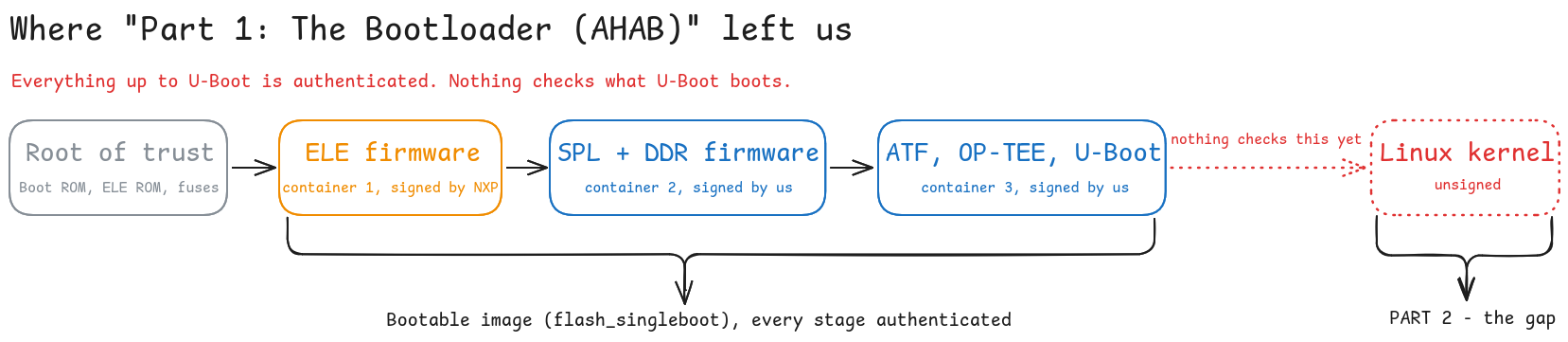

At that point, the chain of trust ended at U-Boot. Although the bootable image containing U-Boot had been authenticated by the ELE firmware, nothing in the chain verified the Linux kernel itself.

What this part builds

In this part, we extend the chain of trust to the Linux kernel by protecting it with a signed FIT (Flattened Image Tree). We will build and sign the FIT image, embed the FIT public key into U-Boot’s control device tree, modify the boot flow so U-Boot verifies the FIT image before booting Linux and finally show that U-Boot rejects FIT images that are tampered with, unsigned or signed with an untrusted key.

This series uses the Yocto Project Wrynose 6.0 LTS release with NXP’s imx-6.18.20-2.0.0 BSP manifest. The meta-frdm-imx93-security layer holds the finished form of every recipe, patch, configuration file and build change these parts describe.

Why we choose FIT over the OS container

When AHAB is enabled, NXP’s default boot flow expects the kernel and device tree to be provided in a signed OS container (os_cntr_signed.bin). U-Boot loads this container with loadcntr, then auth_os requests the ELE firmware to authenticate it and only continues if the authentication succeeds. We already saw this path in section 8 of Part 1, where loadcntr searched for os_cntr_signed.bin.

In this series, we take a different approach. Instead of packaging the kernel and device tree in an OS container, we keep them in a signed U-Boot FIT image and let U-Boot verify that image before booting Linux. The underlying hardware root of trust does not change. The difference is only where the kernel is checked. The OS container is authenticated by the ELE firmware, while a FIT image is verified by U-Boot using a public key embedded in U-Boot’s control device tree. That control device tree is itself authenticated as part of the OEM container that carries U-Boot, so the chain of trust naturally extends from the ELE firmware to U-Boot and finally to the Linux kernel.

The reasons for choosing FIT are:

• A standard, portable mechanism. FIT verification is a mainline U-Boot feature rather than an NXP specific one, so the same concepts, tooling and boot flow can be carried to other platforms.

• One signed image, many targets. A FIT image can hold several kernels and device trees, with each configuration selecting one valid combination, so a single signed image can cover multiple board variants.

• A natural fit for future extensions. A FIT image can also carry artifacts beyond the kernel and device tree, such as an initramfs or additional firmware, so extending the verified boot chain does not require a separate verification mechanism for each new artifact.

Inside a signed FIT image

The Linux kernel is protected by a signed FIT (Flattened Image Tree) image. Like an AHAB container, it bundles several binaries together with the metadata needed to check them before they run. What changes is the component performing that check. AHAB authentication is performed by the ELE (ROM and firmware), while FIT verification is performed entirely by U-Boot.

A FIT image is described by an .its (Image Tree Source) file, which U-Boot refers to as an image source file. It uses device tree syntax and is processed by dtc, but instead of describing hardware, it describes the images that make up the FIT. The Yocto build generates this file automatically when we build the image in section 5 and fit-image.its will appear in the deploy directory. The example below has been trimmed to a single device tree so that it fits on the page.

/dts-v1/;

/ {
        description = "Kernel fitImage for NXP i.MX Minimal Distro with Wayland/1.0/frdm-imx93-secure";
        #address-cells = <1>;
        images {
                kernel-1 {
                        description = "Linux kernel";
                        type = "kernel";
                        compression = "gzip";
                        data = /incbin/("linux.bin");
                        arch = "arm64";
                        os = "linux";
                        load = <0x80400000>;
                        entry = <0x80400000>;
                        hash-1 {
                                algo = "sha256";
                        };
                };
                fdt-imx93-11x11-frdm.dtb {
                        description = "Flattened Device Tree blob";
                        type = "flat_dt";
                        compression = "none";
                        data = /incbin/("imx93-11x11-frdm.dtb");
                        arch = "arm64";
                        hash-1 {
                                algo = "sha256";
                        };
                };
        };
        configurations {
                default = "conf-imx93-11x11-frdm.dtb";
                conf-imx93-11x11-frdm.dtb {
                        description = "1 Linux kernel, FDT blob";
                        kernel = "kernel-1";
                        fdt = "fdt-imx93-11x11-frdm.dtb";
                        hash-1 {
                                algo = "sha256";
                        };
                        signature-1 {
                                algo = "sha256,rsa4096";
                                key-name-hint = "fit_signing_key";
                                padding = "pkcs-1.5";
                                sign-images = "kernel", "fdt";
                        };
                };
        };
};

The table below summarizes the most relevant fields:

Field	What it is
type, arch	Identifies the image type (for example kernel or flat_dt) and the target architecture.
compression	Specifies how the image is stored inside the FIT.
data = /incbin/(...)	Includes the referenced binary in the FIT image.
load, entry	Defines the load and entry addresses used when booting the image.
hash-1	Stores the SHA-256 hash of an individual image.
default	Selects the default boot configuration.
kernel, fdt	Associates a kernel and device tree with a configuration.
signature-1	Stores the signature protecting the configuration.
sign-images	Lists which image hashes are covered by the configuration signature.
padding	Specifies the signature padding scheme.

The FIT has only two top level sections and understanding the difference between them is the key to understanding how FIT verification works:

• The images section contains the individual images together with the metadata and hashes used to verify each of them.
• The configurations section defines valid combinations of those images. Each configuration references the image nodes it uses. In the default and recommended configuration used throughout this series, the configuration node carries the signature, while the individual image nodes carry only hashes.

U-Boot first verifies the configuration signature and then verifies every referenced image against the hashes protected by that signature.

The configuration signature is verified with a public key stored in U-Boot’s control device tree, not the Linux device tree. This is the u-boot.dtb that we will inspect in section 6. When that key is marked required, U-Boot refuses to boot a FIT image whose configuration signature cannot be verified.

Why the configuration is signed instead of the images

U-Boot’s own documentation is direct about the reason. Signing the individual images sounds more thorough but the documentation is explicit that it does not provide complete protection and identifies two attacks that remain possible:

• The first is the mix-and-match attack: “It is possible to create a FIT with the same signed images, but with the configuration changed such that a different one is selected.” Valid images can be recombined into a configuration that was never intended to exist.

• The second is the rollback attack: “It is also possible to substitute a signed image from an older FIT version into a newer FIT.” A correctly signed but outdated kernel can therefore be brought back after a vulnerability has already been fixed.

Signing the configuration prevents both, because one signature covers the configuration and the hashes of the images it references, and changing either breaks it. What this does not prevent is replaying an older FIT as a whole. That FIT was validly signed when it was built and remains cryptographically valid, so rejecting it requires a separate version or rollback protection mechanism.

Why the FIT lives in a raw partition

The default BSP uses imx-imx-boot-bootpart.wks.in, which creates a 256 MiB VFAT /boot partition. Holding the FIT there would mean storing it as a file and loading it with fatload mmc. In this part, the FIT instead resides in its own raw partition and is loaded directly with mmc read.

One reason is to minimize the amount of code that processes untrusted data before signature verification. With a filesystem based boot partition, U-Boot must first parse the FAT filesystem and its metadata before it can locate the FIT image. A raw partition removes filesystem parsing from this pre-verification path, reducing the amount of code that handles attacker controlled data before the FIT signature is verified. The cryptographic guarantees remain the same but considerably less code is involved before the FIT signature is checked.

A raw partition also improves robustness. Because it contains only the FIT image, there is no filesystem metadata that can become inconsistent if power is lost during an update. The FIT itself can still be left partially written by an interrupted update but there is no additional filesystem state that U-Boot must parse or recover from.

The trade-off is that the partition layout has to stay synchronized with the U-Boot environment. With a filesystem based /boot partition, U-Boot only needs a partition number and file name. With a raw partition, it needs the start block and block count instead. In practice, this is a small maintenance cost for a simpler, more deterministic and easier to audit boot path.

1. Create the FIT signing key

The first thing we need is the key that will sign the FIT image. This is a new key, separate from the SRKs (Super Root Keys). Reusing the SRKs may seem like the obvious choice but they serve different purposes. The SRKs are the keys the device is fused to trust for its entire life. The FIT signing key has a narrower role. Its private half signs the FIT image during the build and only the corresponding public key is embedded in U-Boot’s control device tree. Keeping the FIT signing key separate from the SRKs limits the impact of a compromise. If the FIT signing key is compromised, it can simply be replaced by deploying a new U-Boot with an updated control device tree. If the SRK private keys are compromised, there is no equivalent field update because the fused SRK hash is immutable.

Production note. For simplicity, this part stores the FIT signing key on the development machine. In production, private signing keys are typically generated and protected inside a Hardware Security Module (HSM) and accessed through interfaces such as PKCS#11, so the private keys do not leave the secure hardware. Depending on the release process, image signing may be performed as a dedicated release step or directly from the Yocto build if PKCS#11 integration is available.

Create the FIT signing key inside the same artifacts-and-tools directory we created in section 9 of Part 1, keeping it together with the other generated artifacts.

mkdir -p fit-keys
openssl genpkey -algorithm RSA -pkeyopt rsa_keygen_bits:4096 -out fit-keys/fit_signing_key.key
openssl req -new -x509 -sha256 -days 36500 -subj "/CN=FIT Signing Key" -key fit-keys/fit_signing_key.key -out fit-keys/fit_signing_key.crt

Part	Meaning
genpkey -algorithm RSA	Generates the RSA private key (fit_signing_key.key). This key must remain secret.
rsa_keygen_bits:4096	Uses a 4096-bit RSA key.
req -new -x509	Creates a self-signed X.509 certificate (fit_signing_key.crt) containing the corresponding public key.
-sha256	Uses SHA-256 when signing the self-signed certificate.
-days 36500	Gives the certificate a long validity period. U-Boot does not check certificate expiration, so this simply avoids regenerating the certificate unnecessarily.
-subj "/CN=FIT Signing Key"	Supplies the certificate subject on the command line, avoiding interactive prompts.

ls -l fit-keys/
-rw-rw-r-- 1 alper alper 1939 fit_signing_key.crt
-rw------- 1 alper alper 3268 fit_signing_key.key

openssl rsa -in fit-keys/fit_signing_key.key -noout -text | head -1
Private-Key: (4096 bit, 2 primes)

2. Enable FIT verification and replace the boot command

In section 8 of Part 1, we created secure-boot.cfg to enable AHAB support:

CONFIG_AHAB_BOOT=y

We now extend the same configuration fragment to enable FIT signature verification:

cat > ../sources/meta-frdm-imx93-security/recipes-bsp/u-boot/u-boot-imx/secure-boot.cfg <<'EOF'
# Enable AHAB boot support.
CONFIG_AHAB_BOOT=y

# Enable FIT image support and RSA signature verification.
CONFIG_FIT=y
CONFIG_FIT_SIGNATURE=y
CONFIG_RSA=y
CONFIG_RSA_VERIFY=y

# Replace the BSP's default boot command instead of modifying bsp_bootcmd.
# The default path executes
# "run sr_ir_v2_cmd;bootflow scan -lb; run bsp_bootcmd"
#
# "secure_bootcmd" lives in the board environment (imx93_frdm.env)
CONFIG_BOOTCOMMAND="run secure_bootcmd"
EOF

CONFIG_BOOTCOMMAND replaces the BSP’s default boot command with a single run secure_bootcmd. We define secure_bootcmd in the board environment file, which the next two sections cover.

Why we replace the default boot command

It is worth looking at the boot command the BSP provides:

CONFIG_BOOTCOMMAND="run sr_ir_v2_cmd;bootflow scan -lb; run bsp_bootcmd"

Each stage conflicts with the verified FIT boot flow we are building:

Command	What it does	Why we replace it
run sr_ir_v2_cmd	Prepares an EBBR/SystemReady device tree for bootflow scan, for operating systems that do not provide one of their own.	Our kernel always boots with the device tree embedded in the FIT, so this step is unnecessary.
bootflow scan -lb	Scans boot devices for EFI, extlinux or boot scripts and boots the first valid one it finds.	It can bypass the verified boot path entirely by booting whatever it discovers before our logic is reached.
run bsp_bootcmd	Executes the BSP’s standard boot logic.	It expects either an unsigned boot.scr or a raw Image. If AHAB is enabled, it expects a signed OS container (os_cntr_signed.bin). Our design uses none of these, we want to boot a signed FIT image directly from a dedicated raw partition.

Defining what the boot command runs

The default U-Boot environment is defined in the board environment file, board/nxp/imx93_frdm/imx93_frdm.env.

This is the one place in this series that needs a patch rather than a .cfg fragment. The boot command needs control flow and an error path, which do not fit naturally into a Kconfig string. The patch itself is kept small on purpose and explains each of its choices in its own comments.

cat > ../sources/meta-frdm-imx93-security/recipes-bsp/u-boot/u-boot-imx/0001-imx93_frdm-add-secure_bootcmd-for-FIT-boot.patch <<'EOF'
From bba858b679b1a25025819e4b333124a8c74a0dd9 Mon Sep 17 00:00:00 2001
From: Alper Ak <alperyasinak1@gmail.com>
Date: Thu, 6 Aug 2026 21:04:09 +0300
Subject: [PATCH] imx93_frdm: add secure_bootcmd for FIT boot

Add secure_bootcmd, which reads the FIT image from a dedicated raw partition
and lets bootm verify it before transferring control to Linux.
CONFIG_BOOTCOMMAND is updated to invoke secure_bootcmd directly.

Upstream-Status: Inappropriate [product specific boot configuration]

Signed-off-by: Alper Ak <alperyasinak1@gmail.com>
---
 board/nxp/imx93_frdm/imx93_frdm.env | 42 +++++++++++++++++++++++++++++
 1 file changed, 42 insertions(+)

diff --git a/board/nxp/imx93_frdm/imx93_frdm.env b/board/nxp/imx93_frdm/imx93_frdm.env
index 8dee8b63ba4..624ff7b3931 100644
--- a/board/nxp/imx93_frdm/imx93_frdm.env
+++ b/board/nxp/imx93_frdm/imx93_frdm.env
@@ -107,3 +107,45 @@ bsp_bootcmd=
 		fi;
 	fi;
 scriptaddr=0x83500000
+
+/*
+ * Verified FIT boot.
+ *
+ * Reads the signed FIT image from a dedicated raw partition and lets bootm
+ * verify its configuration signature before transferring control to Linux.
+ * CONFIG_BOOTCOMMAND points to "run secure_bootcmd", bypassing the BSP's
+ * default boot flow.
+ *
+ * fit_blk and fit_cnt must match the FIT partition defined in
+ * frdm-imx93-secure.wks.in.
+ *
+ *      fit_blk = 0x4000  -> 8 MiB offset (512 byte MMC blocks)
+ *      fit_cnt = 0x20000 -> 64 MiB partition size
+ *
+ * fit_addr is only a temporary staging address for the FIT image.
+ * bootm relocates the kernel to the load address stored inside the FIT
+ * (0x80400000), so fit_addr does not need to match the kernel load address.
+ */
+
+
+/* Temporary RAM location for the FIT image */
+fit_addr=0x83000000
+
+/* FIT partition offset (8 MiB) */
+fit_blk=0x4000
+
+/* FIT partition size (64 MiB) */
+fit_cnt=0x20000
+
+/* Kernel command line */
+secure_bootargs=setenv bootargs console=ttyLP0,115200 earlycon root=/dev/mmcblk0p2 rootwait rw
+
+secure_bootcmd=
+    echo "Booting signed FIT image...";
+    run secure_bootargs;
+    if mmc dev 0; then
+        if mmc read ${fit_addr} ${fit_blk} ${fit_cnt}; then
+            bootm ${fit_addr};
+        fi;
+    fi;
+    echo "ERROR: FIT boot failed (verification or image loading)"
--
2.43.0
EOF

Update the existing .bbappend to include the patch alongside secure-boot.cfg:

cat > ../sources/meta-frdm-imx93-security/recipes-bsp/u-boot/u-boot-imx_%.bbappend <<'EOF'
# secure-boot.cfg enables FIT and AHAB.
# The patch adds secure_bootcmd to the board environment.

FILESEXTRAPATHS:prepend := "${THISDIR}/${PN}:"

SRC_URI:append = " \
    file://secure-boot.cfg \
    file://0001-imx93_frdm-add-secure_bootcmd-for-FIT-boot.patch \
"
EOF

The RAM addresses deserve attention. The kernel is loaded at 0x80400000, which meta-freescale sets for this SoC through UBOOT_ENTRYPOINT, while the FIT image is staged at 0x83000000, leaving about 44 MiB between them. The current uncompressed kernel is roughly 34 MiB, leaving around 10 MiB of headroom. If the kernel eventually grows beyond that, it can overwrite the staged FIT image before bootm has finished processing it. U-Boot detects this condition and prints:

ERROR: new format image overwritten - must RESET the board to recover

Whenever the kernel configuration changes, check the size of the uncompressed kernel Image in the deploy directory and make sure enough space remains between the kernel load address and the FIT staging address.

3. Create the partition layout

The default BSP partition layout (imx-imx-boot-bootpart.wks.in) creates a 256 MiB VFAT /boot partition. Our design replaces it with a dedicated raw partition for the FIT image and explicitly reserves the U-Boot environment area instead of leaving it as an unnamed gap. Rather than modifying the BSP file directly, we create our own.

mkdir -p ../sources/meta-frdm-imx93-security/files/wic

Create frdm-imx93-secure.wks.in with the following contents:

cat > ../sources/meta-frdm-imx93-security/files/wic/frdm-imx93-secure.wks.in <<'EOF'
# short-description: eMMC layout for secure boot with a raw signed FIT
# long-description:
# Stores the signed FIT image in its own raw partition instead of a VFAT /boot
# filesystem.
#
# mmcblk0                                p1                   p2
#                                        |                    |
#                                        v                    v
# - -------------------- ------- ------------------- ---------------------
# | |      imx-boot      |  env  |      fitImage     |        rootfs       |
# - -------------------- ------- ------------------- ---------------------
# ^ ^                    ^       ^                   ^
# | |                    |       |                   |
# 0 32KiB                7MiB    8MiB                72MiB
#   ${IMX_BOOT_SEEK}, the offset the Boot ROM reads the bootable image from
#
# The bottom row shows start offsets, not partition sizes. imx-boot starts
# at 32 KiB and is currently about 2.2 MiB, so it fits well before the
# reserved environment area at 7 MiB.
#
# Two addresses defined outside this file must match this layout. U-Boot reads
# its environment at CONFIG_ENV_OFFSET = 0x700000 (7 MiB), while secure_bootcmd
# reads the FIT from fit_blk = 0x4000 MMC blocks (8 MiB). Neither address is
# discovered from the partition layout at run time.
#
# The offsets are therefore explicit. Alignment only rounds the current
# position up to the requested boundary, so a larger image before an aligned
# partition can silently move that partition. An explicit --offset instead
# makes Wic fail if the requested location is already occupied.
#
# U-Boot writes only CONFIG_ENV_SIZE = 0x4000 bytes (16 KiB) into the 1 MiB
# reserved for the environment. If the environment layout or size changes,
# the reserved area must be reviewed together with the FIT offset.
#
# These values must stay synchronized with the board environment
# (the u-boot-imx patch in this layer):
#   fit_blk = 0x4000  MMC blocks =  8 MiB  (offset)
#   fit_cnt = 0x20000 MMC blocks = 64 MiB  (size)

# The bootable image, at the offset expected by the Boot ROM. --no-table keeps
# it out of the partition table.
part imx-boot   --source rawcopy --sourceparams="file=imx-boot.tagged" --ondisk mmcblk0 --no-table --align ${IMX_BOOT_SEEK}

# Reserves the area saveenv writes to. It holds no data and gets no partition
# table entry. If imx-boot ever grew beyond 7 MiB, Wic would fail here instead
# of producing an image whose bootloader overlaps the environment.
part u-boot-env --ondisk mmcblk0 --no-table --offset 7M --fixed-size 1M

# The raw FIT partition, which Linux sees as mmcblk0p1. Its offset and size are
# kept in sync with fit_blk and fit_cnt. Wic fails the build if the FIT
# outgrows its 64 MiB partition or if the requested offset is already occupied.
part fit        --source rawcopy --sourceparams="file=fitImage" --ondisk mmcblk0 --offset 8M --fixed-size 64M

# The root filesystem, mmcblk0p2. Nothing outside the image depends on where it
# starts, so it follows the FIT partition rather than being pinned.
part /          --source rootfs --ondisk mmcblk0 --fstype=ext4 --label root --align 8192

# A GPT partition table. It gives every partition a name and a stable GUID,
# neither of which MBR supports.
bootloader --ptable gpt
EOF

frdm-imx93-secure.wks.in references imx-boot.tagged rather than flash_singleboot. The Yocto BSP generates this file automatically by appending a 40-byte trailer containing the bootable image size to flash_singleboot.

The trailer lets uuu locate the bootable image inside a standalone disk image such as a .wic file. If you give uuu only a .wic, without a separate bootloader file, it has to extract the bootable image from inside the .wic, load it into RAM and use it to bring up Fastboot. The trailer tells it where that image ends. You still flash flash_singleboot itself, imx-boot.tagged is only used when embedding the bootable image into the .wic.

A practical note is worth keeping in mind. This partition is sized for the FIT image, not the kernel. The kernel is gzip compressed inside the FIT, which the next section sets with FIT_KERNEL_COMP_ALG, so our 34 MiB uncompressed kernel results in a 15.5 MiB FIT image. A 64 MiB partition therefore leaves comfortable room for future additions such as an initramfs. The uncompressed kernel size has a separate limit but that limit is about RAM, not storage. A larger FIT image does not reduce that space. The kernel expands upward from 0x80400000 toward the FIT staging address, while the staged FIT occupies 64 MiB upward from 0x83000000 into free memory. Only a growing kernel can close this gap and eventually overwrite the staged FIT.

4. Add the FIT settings to the machine configuration

In section 4 of Part 1, we created a custom machine configuration that contained only:

require conf/machine/imx93-11x11-lpddr4x-frdm.conf

We now extend that same machine configuration to enable FIT image generation and signing with the following:

cat > ../sources/meta-frdm-imx93-security/conf/machine/frdm-imx93-secure.conf <<'EOF'
require conf/machine/imx93-11x11-lpddr4x-frdm.conf

# Makes the kernel artifacts available to the `linux-yocto-fitimage` recipe that builds the FIT image.
KERNEL_CLASSES += "kernel-fit-extra-artifacts"

# `frdm-imx93-secure.wks.in` refers to `fitImage` by file name and bitbake does
# not turn that into a dependency, so the task that deploys it is named here.
do_image_wic[depends] += "linux-yocto-fitimage:do_deploy"

# Enables FIT signing and embeds the public key into U-Boot's control device tree, marked as `required`.
UBOOT_SIGN_ENABLE  = "1"

# Tell the build where the signing key is and what it is called.
FIT_KEYS_DIR      ??= ""
UBOOT_SIGN_KEYDIR  ?= "${FIT_KEYS_DIR}"
UBOOT_SIGN_KEYNAME = "fit_signing_key"

# Uses RSA-4096 signatures, matching the key generated in the previous section.
FIT_SIGN_ALG = "rsa4096"

# Explicitly selects SHA-256 for image hashes. This matches the default in
# oe-core's `image-fitimage.conf`, pinned here so the hash algorithm used by
# the signed FIT configuration is visible rather than inherited.
FIT_HASH_ALG = "sha256"

# Leaves the image nodes carrying only hashes instead of signing each one too,
# so the configuration signature is the only signature in the FIT. This is the
# model U-Boot's documentation argues for, and the default in
# `image-fitimage.conf`, pinned so the FIT matches the shape described above.
FIT_SIGN_INDIVIDUAL = "0"

# Selects the custom partition layout we created for raw FIT image.
WKS_FILE = "frdm-imx93-secure.wks.in"

# The kernel inside the FIT is gzip compressed by the default in
# oe-core's `kernel-uboot.bbclass`. Unlike the settings above, this is a
# compression choice rather than a security setting. The value determines how
# the kernel is compressed at build time and is also used for the FIT kernel's
# `compression` property, which tells U-Boot how to decompress it. The choice
# trades boot time against image size. Keep the compression algorithm and file
# extension consistent.
#
FIT_KERNEL_COMP_ALG            = "gzip"
FIT_KERNEL_COMP_ALG_EXTENSION  = ".gz"

# The kernel load and entry addresses inside the FIT are not set here on purpose.
#
# These are RAM addresses, not storage offsets. The FIT is staged at 0x83000000,
# and `bootm` unpacks the compressed kernel out of it to the load address before
# transferring execution to the entry point.
#
# meta-freescale already defines the entry point for this SoC in
# `conf/machine/include/imx-base.inc`:
#
#   UBOOT_ENTRYPOINT:mx93-generic-bsp ?= "0x80400000"
#
# `UBOOT_LOADADDRESS` sets the load address. It has no machine override and only
# a default of `${UBOOT_ENTRYPOINT}` in `uboot-config.bbclass`. Setting both
# would therefore be unnecessary and could make the load and entry addresses
# diverge. We leave both unset and inherit the defaults so they stay consistent.
EOF

Point the build to your FIT signing key directory, either in conf/local.conf or through the environment:

export FIT_KEYS_DIR=/path/to/fit-keys
export BB_ENV_PASSTHROUGH_ADDITIONS="$BB_ENV_PASSTHROUGH_ADDITIONS FIT_KEYS_DIR"

FIT_KEYS_DIR must be added to BB_ENV_PASSTHROUGH_ADDITIONS, otherwise BitBake does not import it from the shell environment and the build fails when it tries to access the signing key.

5. Build the signed FIT image

bitbake -c cleansstate imx-image-core && bitbake imx-image-core

The build now generates the signed FIT image and the new bootable image. It assembles a fitImage from the kernel and its device trees, signs it with fit_signing_key.key, embeds the matching public key from fit_signing_key.crt into U-Boot’s control device tree, rebuilds the bootable image with the updated U-Boot and packages everything into the new .wic image using our custom partition layout.

6. Verify the FIT signature before you flash

Before writing anything to the board, verify that the generated FIT image is correctly signed and that its configuration signature can be verified with the FIT public key embedded in U-Boot’s control device tree.

U-Boot provides a host utility called fit_check_sign for this purpose. It is built alongside mkimage under tools/fit_check_sign in the U-Boot build directory.

The verification requires two files:

• The generated FIT image.
• The U-Boot control device tree containing the embedded FIT public key.

Only the fit_check_sign utility itself has to come from the U-Boot build directory. The fitImage and u-boot.dtb artifacts are available in the deploy directory. Adjust the path to match your build.

export UBOOT_BUILD="$(pwd)/tmp/work/frdm_imx93_secure-poky-linux/u-boot-imx/2026.04/build/imx93_11x11_frdm_defconfig-sd"

$UBOOT_BUILD/tools/fit_check_sign -k u-boot.dtb -f fitImage

The important part of the output is:

sha256,rsa4096:fit_signing_key+

This indicates a successful verification using the required FIT public key in the provided control device tree. The trailing + marks a successful verification attempt, while - marks a failed attempt. The line may appear more than once while fit_check_sign processes the selected configuration and the images referenced by it.

Do not rely on the final Signature check OK message alone. If the provided control device tree contains no public key marked required = "conf", there is no required configuration signature for the tool to enforce and it can still finish successfully after checking the image hashes. In that case, the sha256+ output for the kernel, device tree or initramfs confirms that the image data matches the hashes stored in the FIT but it does not provide authenticity.

7. Sign the bootable image

Embedding the FIT public key modifies U-Boot’s control device tree, which changes the U-Boot binary itself. The build then produces a new bootable image and it must be signed.

Copy the generated imx-boot-frdm-imx93-secure-sd.bin-flash_singleboot from the deploy directory into the artifacts-and-tools directory we created in section 9 of Part 1, alongside sign_config.yaml, then run:

nxpimage -v ahab sign \
    -c sign_config.yaml \
    -b imx-boot-frdm-imx93-secure-sd.bin-flash_singleboot \
    -o signed-flash.bin \
    --force

The signing process itself is unchanged. We still use the same SRKs and the same sign_config.yaml.

8. Flash, boot and verify both stages

At this point, two build artifacts are required for flashing:

• signed-flash.bin which is the signed bootable image containing U-Boot with the embedded FIT public key.
• imx-image-core-frdm-imx93-secure.rootfs-<timestamp>.wic.zst which is the complete eMMC image containing the raw signed FIT partition and the root filesystem.

Copy the generated .wic.zst image from the deploy directory into the same artifacts-and-tools directory if you want all flashing artifacts in one place. Set the board’s boot mode switches to Serial Download Mode, power-cycle or reset the board and run nxpuuu list-devices from the host to confirm that the board is detected. Then flash the newly signed bootable image together with the new full system image:

nxpuuu write -b emmc_all signed-flash.bin imx-image-core-frdm-imx93-secure.rootfs-<timestamp>.wic.zst

Once flashing completes, return the boot mode switches to eMMC boot and power-cycle or reset the board and let the system boot normally.

The first thing to verify is that U-Boot successfully verifies the FIT image before handing control to Linux. The boot log must contain lines like:

Hit any key to stop autoboot: 0
Booting signed FIT image ...
switch to partitions #0, OK
mmc0(part 0) is current device
MMC read: dev # 0, block # 16384, count 131072 ... 131072 blocks read: OK
## Loading kernel (any) from FIT Image at 83000000 ...
   Using 'conf-imx93-11x11-frdm.dtb' configuration
   Verifying Hash Integrity ... sha256,rsa4096:fit_signing_key+ OK
   Trying 'kernel-1' kernel subimage
     Description:  Linux kernel
     Created:      2011-04-05  23:00:00 UTC
     Type:         Kernel Image
     Compression:  gzip compressed
     Data Start:   0x83000128
     Data Size:    15664288 Bytes = 14.9 MiB
     Architecture: AArch64
     OS:           Linux
     Load Address: 0x80400000
     Entry Point:  0x80400000
     Hash algo:    sha256
     Hash value:   7068673e7c8494073dca2eddb697d11ae0d74c817736a5f312fc82293e506542
   Verifying Hash Integrity ... sha256+ OK
## Loading fdt (any) from FIT Image at 83000000 ...
   Using 'conf-imx93-11x11-frdm.dtb' configuration
   Verifying Hash Integrity ... sha256,rsa4096:fit_signing_key+ OK
   Trying 'fdt-imx93-11x11-frdm.dtb' fdt subimage
     Description:  Flattened Device Tree blob
     Created:      2011-04-05  23:00:00 UTC
     Type:         Flat Device Tree
     Compression:  uncompressed
     Data Start:   0x83ef06e0
     Data Size:    61248 Bytes = 59.8 KiB
     Architecture: AArch64
     Hash algo:    sha256
     Hash value:   a2d785983901d9b8c572f4c007c58a23eb15e10f62acf2697f3200784a711b5f
   Verifying Hash Integrity ... sha256+ OK
   Booting using the fdt blob at 0x83ef06e0
Working FDT set to 83ef06e0
   Uncompressing Kernel Image to 80400000
   Loading Device Tree to 000000008ffee000, end 000000008fffff3f ... OK
Working FDT set to 8ffee000

Starting kernel ...

The key line is sha256,rsa4096:fit_signing_key+ OK. It confirms that U-Boot successfully verified the FIT image using the embedded public key before booting Linux.

After Linux has booted successfully, reboot the board, stop at the U-Boot prompt and verify that ahab_status reports no authentication events:

u-boot=> ahab_status
Lifecycle: 0x00000008, OEM Open


	No Events Found!

At this point, the complete secure boot chain is working:

• The ELE firmware authenticated the OEM containers.
• U-Boot verified the signed FIT image before booting Linux.

⚠️ If the FIT verification messages are missing, verification fails or ahab_status reports authentication events, stop here and investigate before continuing. The remaining sections assume that both stages are working correctly.

9. Prove that FIT verification is actually enforced

A successful boot proves only that the valid path works. It does not prove that U-Boot actually enforces FIT verification or rejects modified or untrusted FIT images. To show that FIT verification is really being enforced, rather than just enabled, we perform three negative tests.

Each test exercises a different security property:

• Integrity. Modifying the contents of a signed FIT image must be detected by hash verification.
• Signature requirement. An unsigned FIT image must be rejected.
• Key authenticity. A FIT image signed with an untrusted key must also be rejected.

None of these tests permanently modifies the eMMC. The first test corrupts a copy of the FIT image after it has been loaded into RAM with mmc read. The other two stage temporary FIT images into RAM using fastboot. In every case, a reset restores the board to its original state.

Test 1: A FIT with modified kernel data

We first load the same FIT image that secure_bootcmd normally boots from eMMC, corrupt a few bytes inside the kernel payload on purpose and then attempt to boot it. Run the following commands at the U-Boot prompt:

u-boot=> mmc dev 0
u-boot=> mmc read 0x83000000 0x4000 0x20000
u-boot=> mw.b 0x83010000 0xff 16
u-boot=> bootm 0x83000000

0x83010000 is 64 KiB into the staged FIT image. From the successful boot log in the previous section, we know that the kernel payload starts at 0x83000128. So the overwrite lands inside the kernel payload rather than the FIT header or metadata. The FIT structure itself remains valid but the kernel data no longer matches the signed hash stored in the FIT, so its hash check must fail.

## Loading kernel (any) from FIT Image at 83000000 ...
   Using 'conf-imx93-11x11-frdm.dtb' configuration
   Verifying Hash Integrity ... sha256,rsa4096:fit_signing_key+ OK
   Trying 'kernel-1' kernel subimage
     Description:  Linux kernel
     Created:      2011-04-05  23:00:00 UTC
     Type:         Kernel Image
     Compression:  gzip compressed
     Data Start:   0x83000128
     Data Size:    15664288 Bytes = 14.9 MiB
     Architecture: AArch64
     OS:           Linux
     Load Address: 0x80400000
     Entry Point:  0x80400000
     Hash algo:    sha256
     Hash value:   7068673e7c8494073dca2eddb697d11ae0d74c817736a5f312fc82293e506542
   Verifying Hash Integrity ... sha256 error!
Bad hash value for 'hash-1' hash node in 'kernel-1' image node
Bad Data Hash
ERROR -2: can't get kernel image!

The important detail is that the FIT configuration signature still verifies successfully. This is expected because neither the configuration node, its signature nor the stored image hashes were modified. The failure occurs one step later, when U-Boot calculates the hash of the kernel payload and compares it with the signed hash stored in the FIT. Since the kernel data was modified in RAM, the calculated hash no longer matches the signed hash and U-Boot aborts the boot process.

Test 2: An unsigned FIT

The first test proved that a modified kernel payload inside a signed FIT is detected. This test verifies a different property: U-Boot refuses to boot a FIT image that carries no signature at all. This is the purpose of the required = "conf" property added to U-Boot’s control device tree.

Build a FIT image without a signature node. -f auto tells mkimage to assemble the FIT automatically, so no .its file is needed. Instead, the kernel and device tree are provided directly with -d and -b. Both are referenced by relative path, so run the commands from the deploy directory that contains them. Adjust the mkimage path to match your build.

export MKIMAGE="$(pwd)/tmp/work/frdm_imx93_secure-poky-linux/u-boot-imx/2026.04/build/imx93_11x11_frdm_defconfig-sd/tools/mkimage"

$MKIMAGE -f auto -A arm64 -O linux -T kernel -C gzip \
    -a 0x80400000 -e 0x80400000 -n "unsigned test" \
    -d linux.bin -b imx93-11x11-frdm.dtb \
    /tmp/fitImage-unsigned

Start Fastboot from the U-Boot prompt, stage the unsigned FIT image into RAM, leave Fastboot with Ctrl+C and then boot the staged image:

u-boot=> fastboot 0

sudo fastboot stage /tmp/fitImage-unsigned

u-boot=> bootm 0x82800000

0x82800000 is CONFIG_FASTBOOT_BUF_ADDR, where fastboot stage places the downloaded image. The transfer happens entirely in RAM, so the eMMC is never modified and a reset restores the original system.

## Loading kernel (any) from FIT Image at 82800000 ...
   Using 'conf-1' configuration
   Verifying Hash Integrity ...  error!
No 'signature' subnode found for '<NULL>' hash node in 'conf-1' config node
Failed to verify required signature 'key-fit_signing_key'
Bad Data Hash
ERROR -2: can't get kernel image!

The failure occurs before U-Boot verifies either the kernel or the device tree because the selected configuration carries no signature. Since the embedded FIT public key is marked as required, a valid configuration signature is mandatory. Without one, U-Boot rejects the FIT image immediately, so verification never even reaches the kernel or device tree.

Test 3: A FIT signed with an untrusted key

Generate a second RSA-4096 key and sign the same .its with that key instead of the trusted one. The key files must use the same basename as the original (fit_signing_key) because the key-name-hint property inside the .its determines the filenames to use, while -k only specifies the directory containing them.

export MKIMAGE="$(pwd)/tmp/work/frdm_imx93_secure-poky-linux/u-boot-imx/2026.04/build/imx93_11x11_frdm_defconfig-sd/tools/mkimage"

mkdir -p /tmp/untrusted-keys

openssl genpkey -algorithm RSA -pkeyopt rsa_keygen_bits:4096 \
    -out /tmp/untrusted-keys/fit_signing_key.key

openssl req -batch -new -x509 -key /tmp/untrusted-keys/fit_signing_key.key \
    -out /tmp/untrusted-keys/fit_signing_key.crt

$MKIMAGE -f fit-image.its -k /tmp/untrusted-keys /tmp/fitImage-untrusted

Start Fastboot from the U-Boot prompt, stage the FIT image signed with the untrusted key into RAM, leave Fastboot with Ctrl+C and then boot the staged image:

u-boot=> fastboot 0

sudo fastboot stage /tmp/fitImage-untrusted

u-boot=> bootm 0x82800000

## Loading kernel (any) from FIT Image at 82800000 ...
   Using 'conf-imx93-11x11-frdm.dtb' configuration
   Verifying Hash Integrity ... sha256,rsa4096:fit_signing_key-  error!
Verification failed for '<NULL>' hash node in 'conf-imx93-11x11-frdm.dtb' config node
Failed to verify required signature 'key-fit_signing_key'
Bad Data Hash
ERROR -2: can't get kernel image!

Unlike Test 2, this FIT image does contain a configuration signature. The failure is that the signature was generated with a private key other than the one U-Boot trusts, so it cannot be verified with the public key embedded in U-Boot’s control device tree.

The sha256,rsa4096:fit_signing_key- line is the counterpart of the successful + case shown earlier. The trailing - indicates that signature verification failed. U-Boot therefore cannot satisfy the required signature and refuses to boot the FIT image.

Together, the three tests demonstrate the complete FIT trust model:

• Integrity: modifying the kernel payload inside a signed FIT is detected by hash verification.
• Signature requirement: an unsigned FIT is rejected because a valid configuration signature is required.
• Key authenticity: a FIT signed with any private key other than the trusted one is rejected during signature verification.

All three tests operate entirely in RAM. The eMMC contents remain unchanged, so a reset or power-cycle restores the original verified boot path.

10. Move the device to the OEM Closed lifecycle

In section 15 of Part 1, we left the device in the OEM Open lifecycle state on purpose.

Now, this part completed the second stage of the secure boot chain by adding FIT signature verification in U-Boot and confirming that both stages correctly accept valid images. With the complete chain now verified end to end, the device can safely be transitioned to the OEM Closed lifecycle.

⚠️ Before closing the device: Do not proceed if ahab_status reports any authentication events related to the current boot. In particular, verify that the device reports No Events Found!. If the wrong SRK hash was programmed into the fuses or the corresponding signing keys are no longer available, closing the device makes the board permanently unbootable. In OEM Open, authentication failures may still be reported without stopping the boot process. After transitioning to OEM Closed, those failures are enforced and the device will reject the image. The transition is irreversible. There is no way back to OEM Open and no recovery mode that skips authentication.

⚠️ Before continuing: Boot the board, interrupt autoboot, stop at the u-boot=> prompt and close your serial terminal. In this series, nxpele communicates with U-Boot through the serial backend (-d uboot_serial) over /dev/ttyACM0, so the serial port must not be in use when the command is executed.

Run:

nxpele -p /dev/ttyACM0 \
    -d uboot_serial \
    -f mimx9352 \
    forward-lifecycle-update -l OEM_CLOSED

A successful execution prints:

Forward Lifecycle update ends successfully.

After the command completes, reconnect to the serial console, reboot and interrupt autoboot if necessary and verify the new lifecycle state:

u-boot=> ahab_status
Lifecycle: 0x00000020, OEM closed

        No Events Found!

OEM Closed confirms that the lifecycle transition completed successfully, while No Events Found! confirms that the ELE firmware has no authentication events to report for the current boot. The board should also continue booting normally.

Enforcement also covers the USB recovery path

Closing the device does not only protect the eMMC boot path. Serial Download Mode is simply another boot path, not a way around secure boot. Before Fastboot can write anything, uuu must first boot the bootable image it transfers to the board and the ELE firmware authenticates that image exactly the same way as when booting from eMMC.

To demonstrate this, generate a second set of SRKs (Super Root Keys) with nxpcrypto. Be careful not to overwrite the SRKs you previously generated and used for programming the fuses. If those keys are lost or overwritten, you will no longer be able to sign bootable images that existing devices accept, which leaves the device permanently bricked. Then update sign_config.yaml to use this second, untrusted set and sign the bootable image again:

for i in 0 1 2 3; do
    nxpcrypto key generate -k rsa4096 -o untrusted-keys/untrusted_srk_${i}.pem
done

nxpimage ahab sign \
    -c sign_config.yaml \
    -b imx-boot-frdm-imx93-secure-sd.bin-flash_singleboot \
    -o signed-flash-untrusted.bin \
    --force

The result is a well-formed image and nxpimage -v ahab verify -f mimx9352 -b signed-flash-untrusted.bin reports no errors. The container carries its own SRK table together with a signature that matches it. The only difference is that the hash of this table no longer matches the fused OEM_SRKH value and no host side check can detect this mismatch.

Set the board’s boot mode switches to Serial Download Mode, power-cycle or reset the board and run nxpuuu list-devices from the host to confirm that the board is detected. Then try to flash the bootable image signed with the untrusted SRKs:

nxpuuu write -b emmc signed-flash-untrusted.bin

After running the command, you see an error like this:

SPSDKError: SPSDK: wait_uuu_finish: Failed while executing UUU command SDPS: boot -f signed-flash-untrusted.bin(exit code: 0, status: -1)
Error details: HID(W): LIBUSB_ERROR_NO_DEVICE (-4)

The failure happens before Fastboot even starts. The first command executed by uuu is:

SDPS: boot -f signed-flash-untrusted.bin

This hands the image to the Boot ROM so that U-Boot can start and expose the Fastboot interface. The ELE firmware authenticates the OEM containers inside that image against the fused OEM_SRKH, exactly as it does on every boot. What the OEM Closed lifecycle changes is the consequence: the authentication failure is now fatal instead of simply being reported. The OEM containers never execute, the board immediately disconnects from USB and Fastboot never becomes available. As a result, no data is written to the eMMC.

From this point onward, only bootable images whose OEM containers are signed with private keys corresponding to the SRK table whose hash matches the fused OEM_SRKH can boot or be used through the USB recovery path.

11. Where we are and what comes next

The chain of trust now reaches the Linux kernel. The ELE firmware authenticates the OEM containers. U-Boot verifies the FIT configuration signature and the hashes of the images it protects. The device therefore rejects kernel images that are tampered with, unsigned or signed with an untrusted key.

But the chain stops there. Once Linux mounts the root filesystem, nothing in this boot chain checks the integrity of the data read from it. System binaries, libraries and the init process are read from storage without an integrity check. If an attacker can modify the root filesystem on eMMC, the boot chain can still succeed while the system runs modified software.

Part 3 will close that gap with dm-verity. It provides runtime integrity verification for the read-only root filesystem by verifying data blocks on demand against a Merkle hash tree anchored to a trusted root hash.

Beyond this series, a production device should also consider:

• U-Boot hardening, such as protecting the environment, disabling unnecessary commands, restricting console access and implementing rollback protection.
• Kernel hardening, including a secure kernel configuration, module restrictions, memory protection features and attack surface reduction.
• Userspace hardening, for example least privilege services, SELinux or AppArmor and secure update mechanisms.
• Hardware and manufacturing security, such as lifecycle management, debug interface lockdown, secure key storage and protection of signing keys in an HSM or other controlled key management system.
